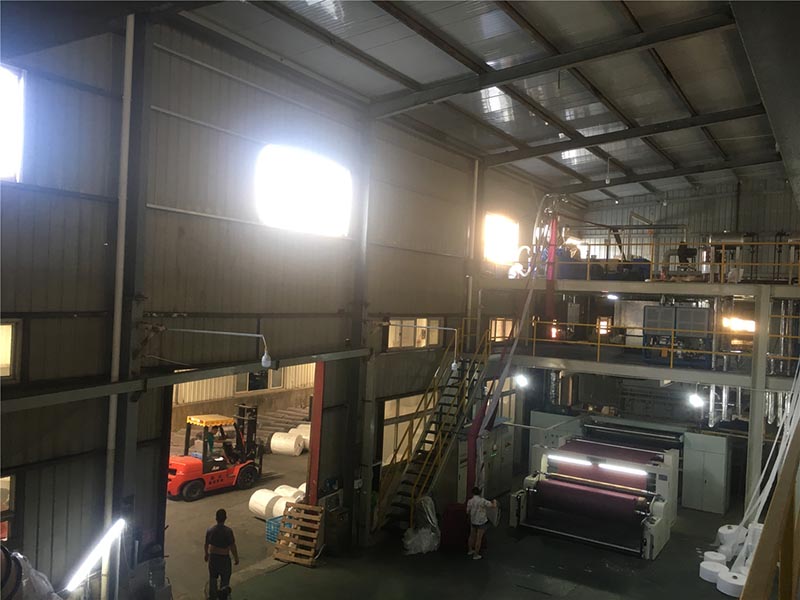

High Capacity Single Beam Nonwoven Fabric Production Line
| Model No. | YP-S-1. 6 | YP-S-2. 4 | YP-S-3. 2 |
| Width | 1. 6METER | 2. 4METER | 3. 2METER |
| Whole Size | 15*8. 6*9. 5m | 15*9*9. 5m | 15*10*9. 5m |
| Speed | 150M/MIN | 150M/MIN | 150M/MIN |
| GSM | 10-180G/MIN | 10-180G/MIN | 10-180G/MIN |
| Capacity | 4T/DAY | 7-8TON/DAY | 9-10TON/DAY |
| Embossing Pattern | Diamond, oval, cross or line | Diamond, oval, cross or line | Diamond, oval, cross or line |
- Description of Nonwoven machine
- Specifications
- Applications
- Advantage
Description of Nonwoven machine
Yanpeng Nonwoven fabric production line
This nonwoven fabric fabric making machine has advantages of superior performance, beautiful color, and good quality.
After the polymer is extruded and stretched to form a continuous filament, the filament is laid into a net, which is then bonded by itself, by thermal bonding, chemical bonding or mechanical reinforcement to make the net into non-woven.
The process as follow
Polymer (polypropylene + recycling) - high temperature melt extrusion of large screw - Filter - metering pump (quantitative conveying) - spinning (drawing up and down the spinning entrance) - cooling - Air traction - screen forming - up and down pressure rollers (pre-reinforcement) - hot rolling (reinforcement) - winding - inverted distribution Cutting-Weighing Packaging-Storage of Finished Products
Specifications
Extruder
● Name: Extrusion Machine
● Model: φ130/150/170
● Heating System: Electricity heating
● Drive Motor: Siemens
● Original: CHINA
Calendar
● Name: Embossing calender machine
● Emboss Pattern: Ovel/diamond/sesame/dot
● Emboss Roll diameter: 450-520mm
● Linear pressure: 30-125 N/mm
● Original: CHINA
Filter
● Name: Candle filtration Machine
● Model: CPF-PT-3.5C
● Filtration Area: 3.5m2
● Capacity: 650kgs/h
● Filtration Chamber: 2 pcs (switch online)
● Original: CHINA
Spinning box
● Name: Spinning beam
● Model: 1600/2400/3200mm
● Heating System: Oil/Electricity Heating
● Distribution Design: Big hanger type
● Original: CHINA
Web former
● Name: Webformer
● Model: 1600/2400/3200mm
● Rolling Speed: 150M/Minute
● Original: CHINA
Winder
● Name: Automatic winding machine
● Effective width: 1600/2400/3200 mm
● Rolling Speed: 150M/Minute
● Rolling Diameter: 2000 mm
● Original: CHINA
Applications
Yanpeng Nonwoven fabric production lines are designed and manufactured in following applications.Mainly the single beam machine is widely used in package industry.The application is correspondingly wide.
Such as
● PACKAG: Non woven shopping bag, Rice Packaging, Clothes packaging, etc.
● HYGIENE: Baby and adult diapers, Female hygiene, etc.
● MEDICAL: Surgeon's masks, Disposable garments, etc.
● HOUSEHOLD: Suit Cover, Knitwear Cover, Garderobe Cover, Table Cloth Etc.
● FILTRATION: Air, Gas, Liquids, etc.
Advantage
Our team and service
1. Quality Control in whole process, provide individual high cost-effective nonwoven production lines, helping customer cost saving.
2. Focus on nonwoven production lines research and development for 16 years. Install and running more than 400 lines all over the world
3. Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer
4. Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time
