High Cost Effective S PP Nonwoven Machine
| Place of Origin: | Wenzhou, Zhejiang, China |
| Brand Name: | Yanpeng |
| Model Number: | YP-S 1600mm, 2400mm, 3200mm |
| Certification: | CE ISO |
| Warranty: | 1years |
| Raw material: | Polypropylene(PP) |
| Final products: | Nonwoven Fabric |
| Color: | As customer require |

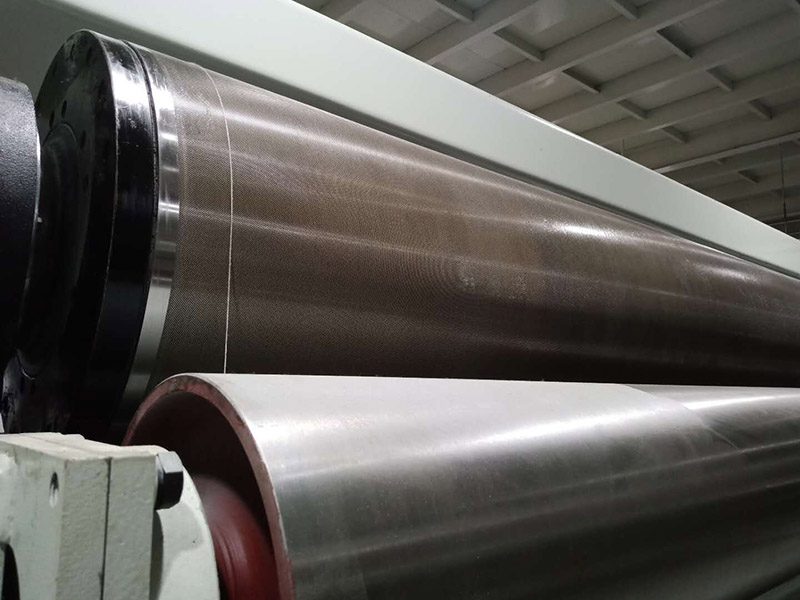

| Embossing: | Oval and diamond |
- Description of Nonwoven machine
- Specifications
- Applications
- Advantage
Description of Nonwoven machine
Payment & Shipping Terms:
Minimum Order Quantity: | 1SET |
Port: | Ningbo |
Delivery Time: | 90Days |
Payment Terms: | T/T,L/C,D/P |
Supply Ability: | 50 sets per year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Quick Detail
1Other names: nonwoven equipment,nonwoven production line,nonwoven fabric macking machine
2. Mainly usages: produce nonwoven fabric for medical treatment, protective articles, household, Hotel accessories, cosmetic disposable goods, farm tools and garment packaging and architecture.
Description

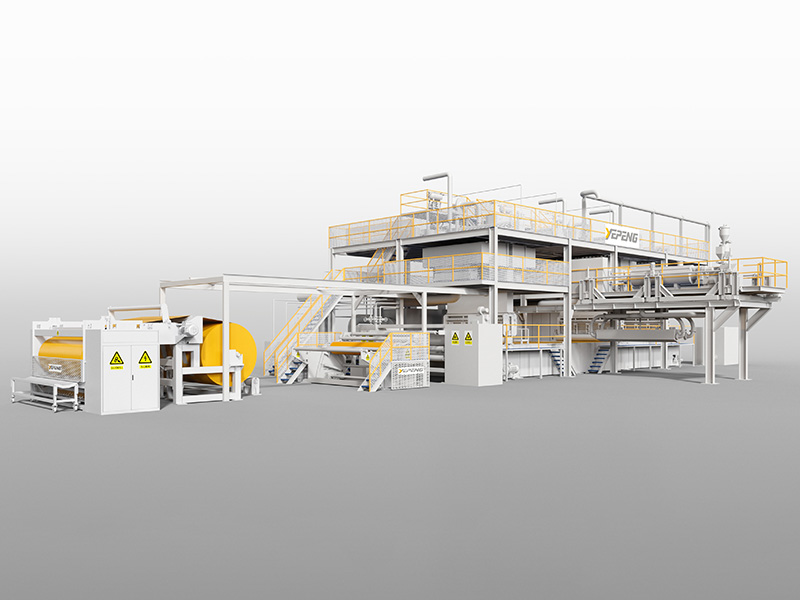

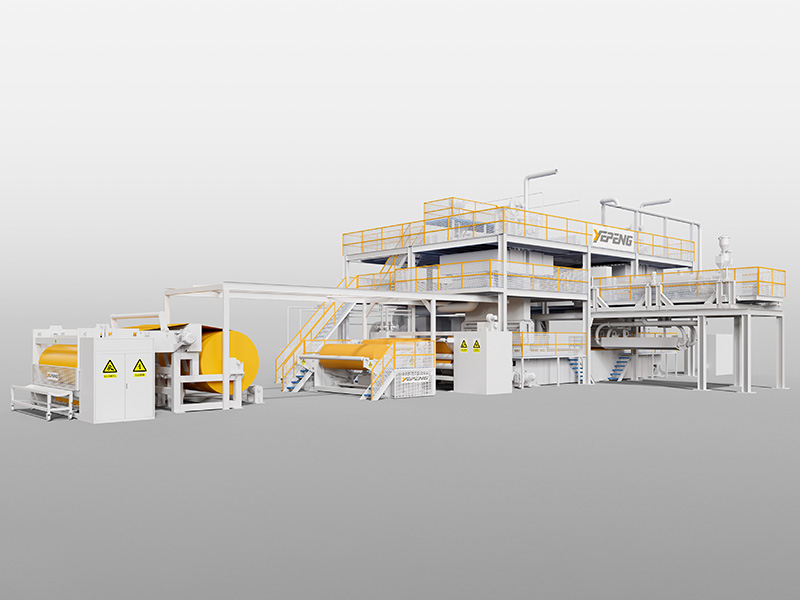

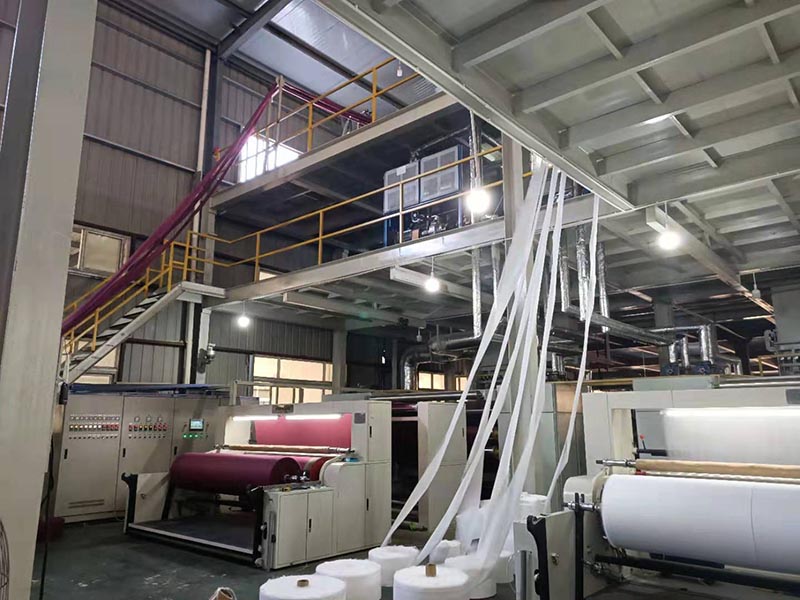

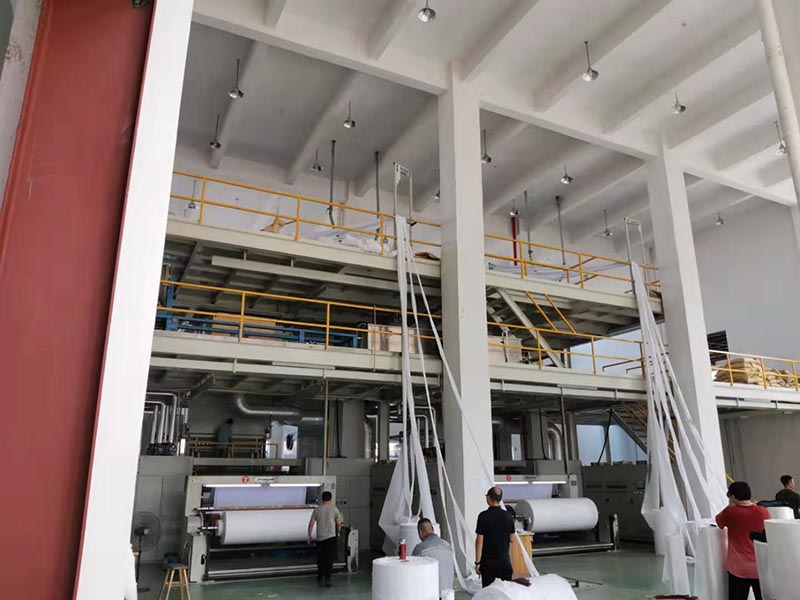

Superior quality full automatic S spunbond and meltblown nonwoven machine / single S nonwoven machine for package.
This machine is suitable for the production of polypropylene spunbonded nonwovens. With polypropylene chips as raw materials, extrusion, spinning, quenching, closed air stretching, netting, calendering, winding, cutting and other processes are carried out as required.
Our nonwoven machine has passed the certification of professional institutions and obtained professional certificates,such as CE and ISO9001.
Specifications
| Model No. | YP-S-1. 6 | YP-S-2. 4 | YP-S-3. 2 |
| S(Product width) | 1600mm | 2400mm | 3200mm |
| Equipment Size | 15*8. 6*9. 5m | 15*9*9. 5m | 15*10*9. 5m |
| Speed | 150m/min | 150m/min | 150m/min |
| Gram Weight | 10-180g/m2 | 10-180g/m2 | 10-180g/m2 |
| Yield (according to 70g/m2) | 4T/Days | 7-8T/Days | 9-10T/ Days |

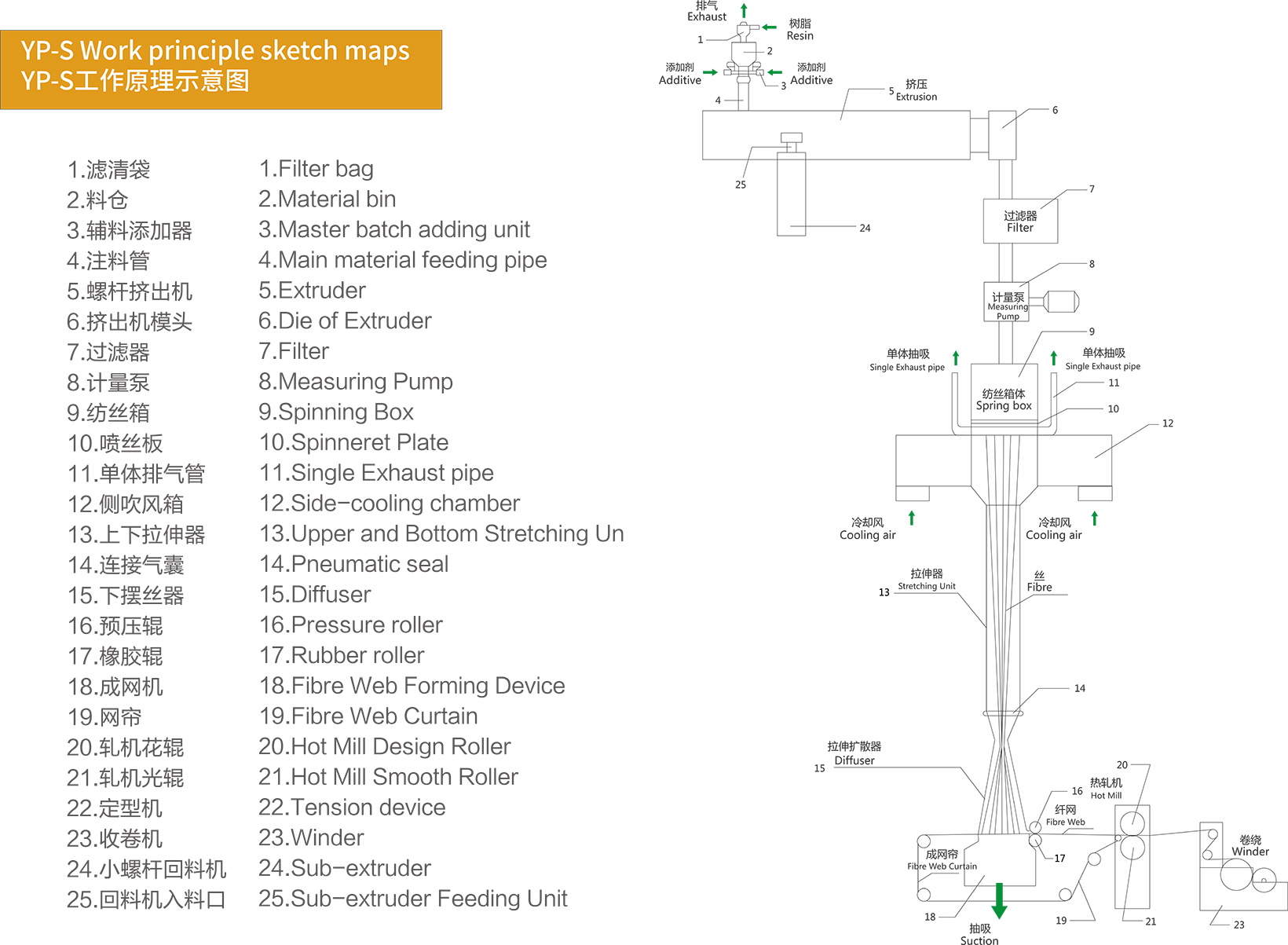

Process flow
Feeding→Extrusion Melting→filtering→metering→spinning→Cooling→Stretching
→Web spreading→Thermal bonding→slitting→collecting
Applications
Spunbonded Nonwoven fabric Mainly Applications
| Nonwoven Packaging Products | Shopping bag, rice backaging, tea bag, clothes packaging, etc. |
| Nonwoven Hygiene Products | Baby and adult diapers: Top sheets, back sheets, ears, tapes, landing zone; Female hygiene: Top sheets, wings; Cleaning wipes: Baby care, cosmetics, etc. |
| Nonwoven Medical Products | Surgeon's Cap, surgeon's mask, disposable garments, surgical drapes, surgical sheet, shoe covers, etc. |
| Nonwoven Technical Products | Geotextiles: Erosion protection, filtration, reinforcement, drainage, separation layers, embankment fortification etc. for streets, dikes, and farms Structural engineering: Bitumen supports, roof insulation sheeting, diaphragms Agriculture: Crop forcing nonwovens, insect protection, etc. Automotive: Inner paneling, sound insulation, insulation, etc. |
| Nonwoven Furniture Products | Beds: Pocket springs, mattresses, cushions, bed covers, disposal bedding Seating: Upholstered backs, sub-paneling, intermediate layers, etc. |
Certificates
Advantage
1. The structure of the whole line is perfect and the operation is convenient.
2. The control elements are well made, with excellent performance and reliable technology.
3. The whole line is controlled by PLC and operated by touch screen.
4. The whole line is highly automated.
Our strength
1. Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving.
2. Focus on non woven equipment research and development in 14 years. Install and running more than 400 lines all over the world

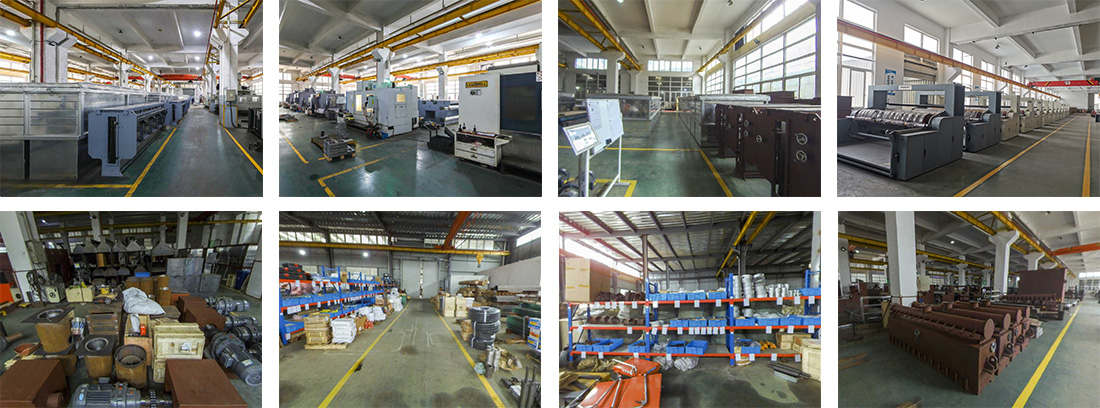

3. Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer
4. Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
Our company
Zhejiang Yanpeng Non-woven Machinery Co.,Ltd is a professional non-woven production line manufacturer which engaged in development and production for many years.
We can provide customized single S, double S three S spunbond non-woven production line, SSMS, SMMS SMS spunmelt (spunbond & meltblown) production lines, and other PP, PET, BiCo spunbond production line to our customers.
Our company has already passed ISO9001: 2010 international quality management system certification , standardization certification, CE certification, and we also have the right of import and export.
Packing & Transportation
