Multifuncational Nonwoven Fabric Production Line
| Model No. | YP-S-1. 6 | YP-S-2. 4 | YP-S-3. 2 |
| Width | 1. 6METER | 2. 4METER | 3. 2METER |
| Whole Size | 15*8. 6*9. 5m | 15*9*9. 5m | 15*10*9. 5m |
| Speed | 150M/MIN | 150M/MIN | 150M/MIN |
| GSM | 10-180G/MIN | 10-180G/MIN | 10-180G/MIN |
| Capacity | 4T/DAY | 7-8TON/DAY | 9-10TON/DAY |
| Embossing Pattern | Diamond, oval, cross or line | Diamond, oval, cross or line | Diamond, oval, cross or line |
- Description of Nonwoven machine
- Specifications
- Applications
- Advantage
Description of Nonwoven machine
Zhe Jiang Yanpeng Nonwoven machinery Co., ltd. is one of the leading and competitive providers of complete nonwoven line worldwide.
We mainly manufacture spunbond nonwoven lines and spunmelt (spunbond & meltblown) lines, such as S, SS, SSS, SMS and SSMS nonwoven lins.
Yanpeng Nonwoven Fabric Production Line use Polypropylene granules as raw material and produce pp spun bond nonwoven fabric or melt blown nonwoven fabric on line.
The production line is full automatic pp nonwoven fabric making machine which controlled by smart programming with high quality PLC control system, the complete machine can be operated simply and maintain convenient. The production line adopts well-known components/equipment such Piovan/AEC gravimetric pp feeding machine; Maag spinning pump; Enka Spinneret; Kusters embossing calender; Carrier cooling system and Siemens Motors/PLC etc...
Specifications
Double beam Nonwoven production line specification
| Model No. | YP-SS-1. 6 | YP-SS-2. 4 | YP-SS-3. 2 |
| Width | 1. 6METER | 2. 4METER | 3. 2METER |
| Whole Line Size | 29*13*10m | 29*14*10m | 29*15*10m |
| Speed | 350M/MIN | 350M/MIN | 350M/MIN |
| GSM | 10-150G/MIN | 10-150G/MIN | 10-150G/MIN |
| Capacity | 9-10T/DAY | 13-14TON/DAY | 18-19TON/DAY |
| Embossing Pattern | Diamond, oval, cross or line | Diamond, oval, cross or line | Diamond, oval, cross or line |
SMS Nonwoven production line specification
| Model No. | YP-SMS-1. 6 | YP-SMS-2. 4 | YP-SMS-3. 2 |
| Width | 1. 6METER | 2. 4METER | 3. 2METER |
| Whole Line Size | 31*20*10m | 32*21*10m | 34*22*10m |
| Speed | 400M/MIN | 400M/MIN | 400M/MIN |
| GSM | 12-150G/MIN | 12-150G/MIN | 12-150G/MIN |
| Capacity | 11T/DAY | 15TON/DAY | 21TON/DAY |
| Embossing Pattern | Diamond, oval, cross or line | Diamond, oval, cross or line | Diamond, oval, cross or line |
Extruder
● Name: Extrusion Machine
● Model: φ130/150/170
● Heating System: Electricity heating
● Drive Motor: Siemens
● Original: CHINA

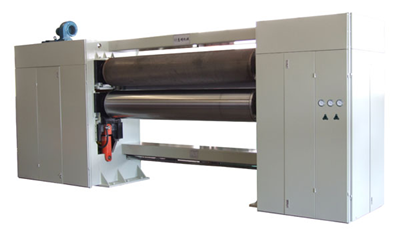

Calendar
● Name: Embossing calender machine
● Emboss Pattern: Ovel/diamond/sesame/dot
● Emboss Roll diameter: 450-520mm
● Linear pressure: 30-125 N/mm
● Original: CHINA/GERMANY
Filter
● Name: Candle filtration Machine
● Filtration Area: 3.5m2
● Capacity: 650kgs/h
● Filtration Chamber: 2 pcs (switch online)
● Original: CHINA
Spinning box：
● Name: Spinning beam
● Model: 1600/2400/3200mm
● Heating System: Oil/Electricity Heating
● Distribution Design: Big hanger type
● Original: CHINA
Web former
● Name: Webformer
● Model: 1600/2400/3200mm
● Rolling Speed: 200-400M/Minute
● Original: CHINA
Winder
● Name: Automatic winding machine
● Effective width: 1600/2400/3200 mm
● Rolling Speed: 200-400M/Minute
● Rolling Diameter: 2000 mm
● Original: CHINA
Applications
Yanpeng Nonwoven production lines are designed and manufactured in following applications.The application is correspondingly wide.
Such as
● PACKAG: Shopping bag, Rice Packaging, Clothes packaging, etc.
● HYGIENE: Baby and adult diapers, Female hygiene, etc.
● MEDICAL: Surgeon's masks, Disposable garments, etc.
● HOUSEHOLD: Suit Cover, Knitwear Cover, Garderobe Cover, Table Cloth Etc.
● FILTRATION: Air, Gas, Liquids, etc.
Certificates
Advantage
Our team and service
1. Quality Control in whole process, provide individual high cost-effective nonwoven production lines, helping customer cost saving.
2. Focus on nonwoven production lines research and development for 16 years. Install and running more than 400 lines all over the world.
3. Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer.
4. Over 20 person team for machine after sales service. Ensure the customers can get quickly and professional installation and debugged in time.
