Single S Nonwoven Fabric Production Line for Bag Making
| Model No. | YP-S-1. 6 | YP-S-2. 4 | YP-S-3. 2 |
| Width | 1. 6METER | 2. 4METER | 3. 2METER |
| Whole Size | 15*8. 6*9. 5m | 15*9*9. 5m | 15*10*9. 5m |
| Speed | 150M/MIN | 150M/MIN | 150M/MIN |
| GSM | 10-180G/MIN | 10-180G/MIN | 10-180G/MIN |
| Capacity | 4T/DAY | 7-8TON/DAY | 9-10TON/DAY |
| Embossing Pattern | Diamond, oval, cross or line | Diamond, oval, cross or line | Diamond, oval, cross or line |
- Description of Nonwoven machine
- Specifications
- Applications
- Advantage
Description of Nonwoven machine
Yanpeng Nonwoven fabric production line
This single S nonwoven fabric production line is widely used for nonwoven bag making, has advantages of superior performance, beautiful color, and good quality.
After the polymer is extruded and stretched to form a continuous filament, the filament is laid into a net, which is then bonded by itself, by thermal bonding, chemical bonding or mechanical reinforcement to make the net into non-woven.
The process as follow
Polymer (polypropylene + recycling) - high temperature melt extrusion of large screw - Filter - metering pump (quantitative conveying) - spinning (drawing up and down the spinning entrance) - cooling - Air traction - screen forming - up and down pressure rollers (pre-reinforcement) - hot rolling (reinforcement) - winding - inverted distribution Cutting-Weighing Packaging-Storage of Finished Products
Specifications
| Product name: | Nonwoven fabric production line |
| Final products: | PP spun bond Nonwoven Fabric |
| Width: | 1600-3200MM or Customized |
| Raw material: | Polypropylene |
| Capacity: | 4-10 Tons/day |
| Application: | Nonwoven Fabric Disposable |
| Color: | As customer required |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certificate: | CE, ISO |
| Machine Type: | Nonwoven Fabric Production line |
| Condition: | New Automatic |
| Grade: | Automatic |
Applications
Nonwoven Fabric Applications
Yanpeng Nonwoven fabric production lines are designed and manufactured in following applications. Mainly the single beam machine is widely used in package industry. The application is correspondingly wide.
Such as
● PACKAG: Non woven shopping bag, Rice Packaging, Clothes packaging, etc.
● HYGIENE: Baby and adult diapers, Female hygiene, etc.
● MEDICAL: Surgeon's masks, Disposable garments, etc.
● HOUSEHOLD: Suit Cover, Knitwear Cover, Garderobe Cover, Table Cloth Etc.
● FILTRATION: Air, Gas, Liquids, etc.
Advantage
Our team and service
1. Quality Control in whole process, provide individual high cost-effective nonwoven fabric production lines, helping customer cost saving.
2. Focus on nonwoven fabric production line research and development for 16 years. Install and running more than 400 lines all over the world.

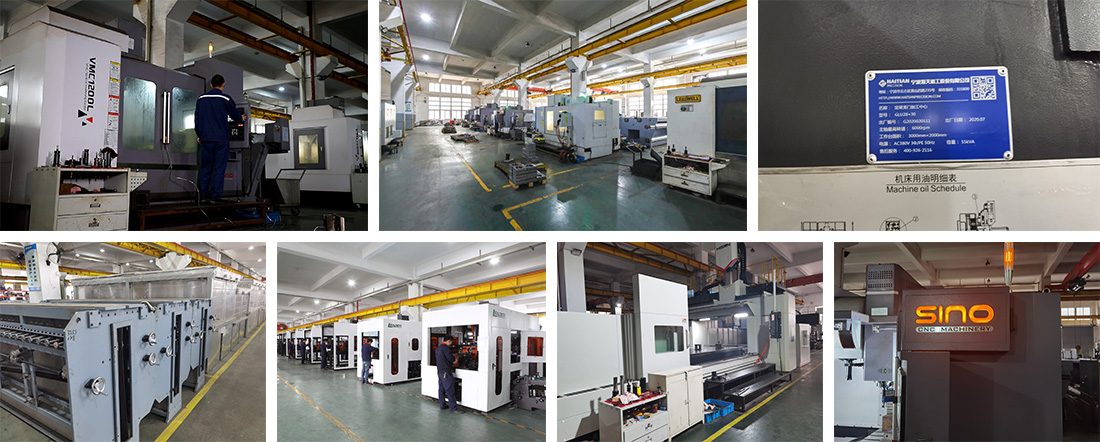

3. Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for each customer.
4. Over 20 person team for machine after sales service.Ensure the customers can get quickly and professional installation and debugged in time.
Packing & Transportation
